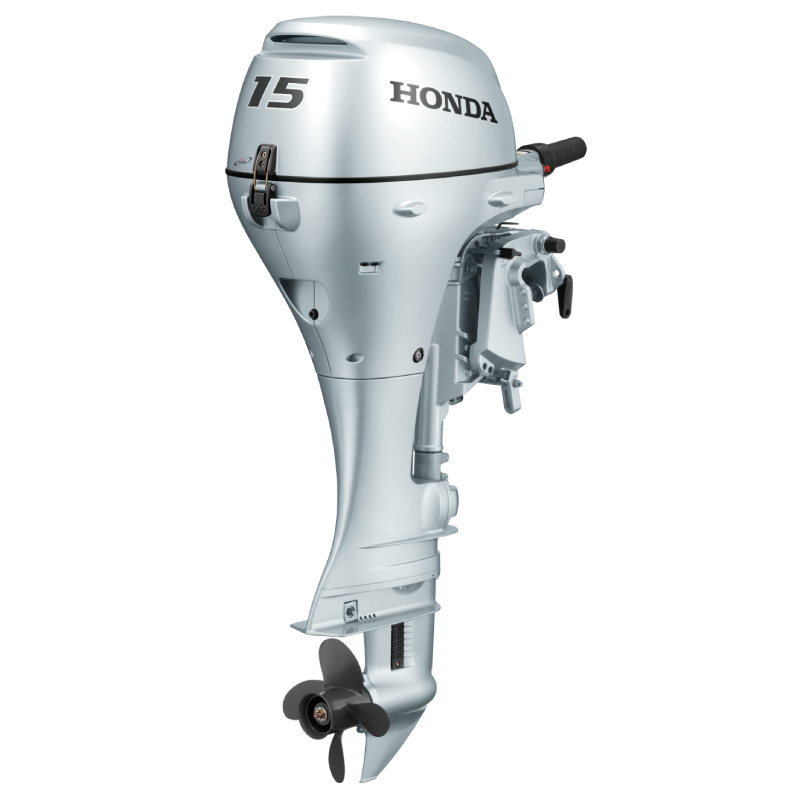

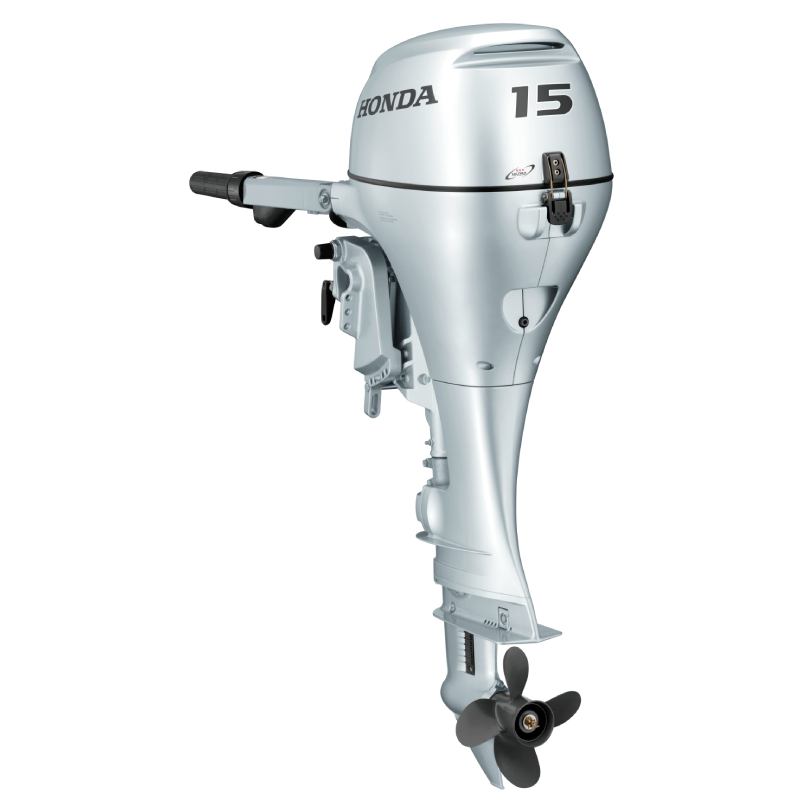

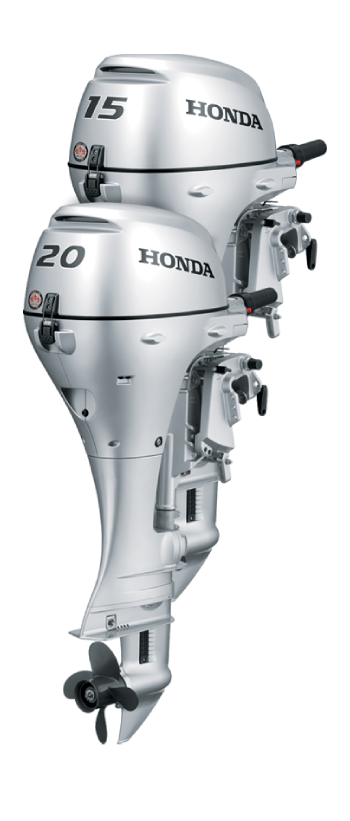

BF15 and BF20 Honda outboard engines

A PORTABLE POWERHOUSE.

The Honda BF15 and BF20 are the epitome of convenience, weighing just 46.5kg, and ranking among the lightest in their class. Yet, they embody the unmistakable Honda DNA – quiet, dependable, fuel-efficient, and brimming with features. These engines boast the highest output charging system, ensuring an abundance of power for all your electronics, even during trolling. With substantial displacement for exceptional performance and the option to choose the BFP Power Thrust design, which offers a remarkable 60% more thrust in reverse and 15% more in forward, they redefine control and power on the water. Easy one-hand starting, shallow water drive, power tilt, and more make them the perfect blend of power and portability, delivering an extraordinary boating experience.

QUIET & SMOOTH PERFORMANCE

LARGE DISPLACEMENT – BETTER PERFORMANCE

At 21.4 cubic inches, the BF15 and 20 have one of the largest displacements in its class. Along with the long-stroke design, this provides optimum torque throughout the RPM range.

PGM IGNITION

A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range, providing optimum overall performance.

SHALLOW WATER DRIVE

An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas. Shallow water drive greatly reduces the risk of engine damage.

3 STAGE CARBURETION – BETTER FUEL ECONOMY

Conventional 2-circuit carburetors go directly from a lean mixture at idle to a rich setting at full throttle. The BF15 and 20 add a third stage for better economy and smoother operation.

POWER TILT AVAILABLE

Conveniently allows user to tilt the unit out of the water. At low speeds acts like a power shallow-water-drive device, permitting access to the shallow water areas.

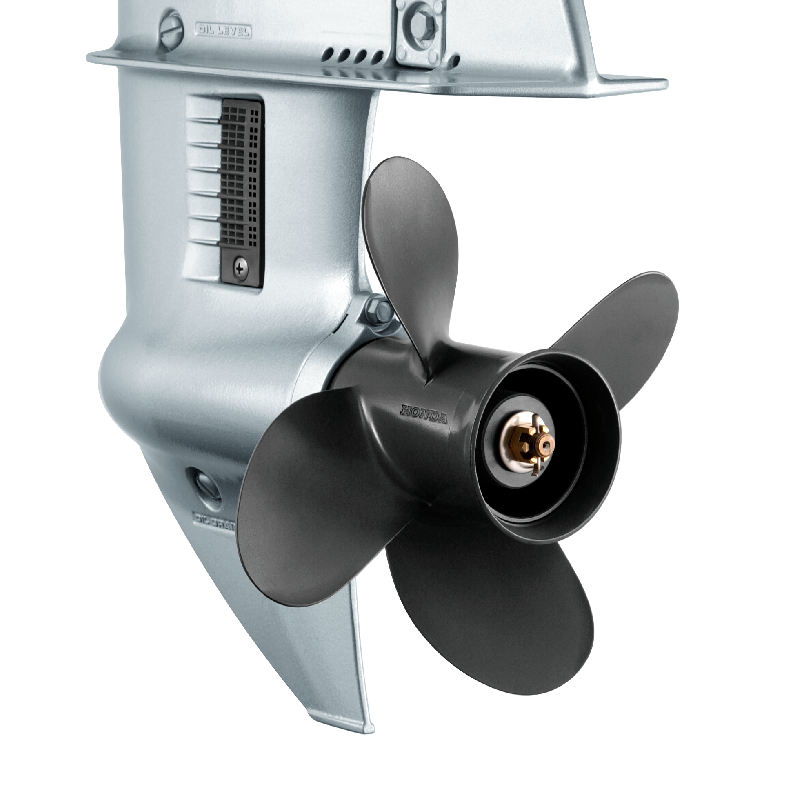

POWER THRUST FOR ADDED PERFORMANCE

OPTIONAL POWER THRUST DESIGN – BETTER PERFORMANCE FOR HEAVY LOADS

The BF15 and 20 are available with an optional Power Thrust design (BFP models). The 10″ x 7 5/8″ Power Thrust 4-blade propeller creates 60% more thrust in reverse and 15% more in forward. The result? Improved maneuverability and performance.

REVERSE EXHAUST RELIEF FOR INCREASED MANUEVERABILITY

The exhaust relief feature creates more power in reverse by minimizing cavitation around the propeller blades. The exhaust relief is located above the cavitation plate, allowing the prop to run in clean, exhaust-free water.

LEGENDARY RELIABILITY

TRUE 5 WARRANTY

Honda’s True 5 Warranty is the best in the business. This transferable, non-declining warranty is the same on the first day as it is on the last.

ENGINE ALERT SYSTEM – KEEPS YOU INFORMED

The integrated warning system protects the engine from severe damage due to low oil, over-revving and overheating.

4-FRONT CORROSION PROTECTION SYSTEM – FIGHTS THE ELEMENTS

A patented, “Double Sealed” multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.

EASY STARTING

EASY ONE HAND STARTING

A built-in decompression release and digital CDI system set the BF15 and 20’s ignition timing. This reduces the effort required to pull-start the engine by hand by 40%!

AUTO START ENRICHMENT – EASY STARTS

Auto Start Enrichment acts as an automatic choke. Just like a fuel injection system, it automatically adjusts the air/fuel mixture for quick, easy starting and warm-up.

EASY OWNERSHIP

LIGHTWEIGHT DESIGN

The lightest 4-stroke model in their class, the BF15 and 20 are easy to transport and convenient to mount.

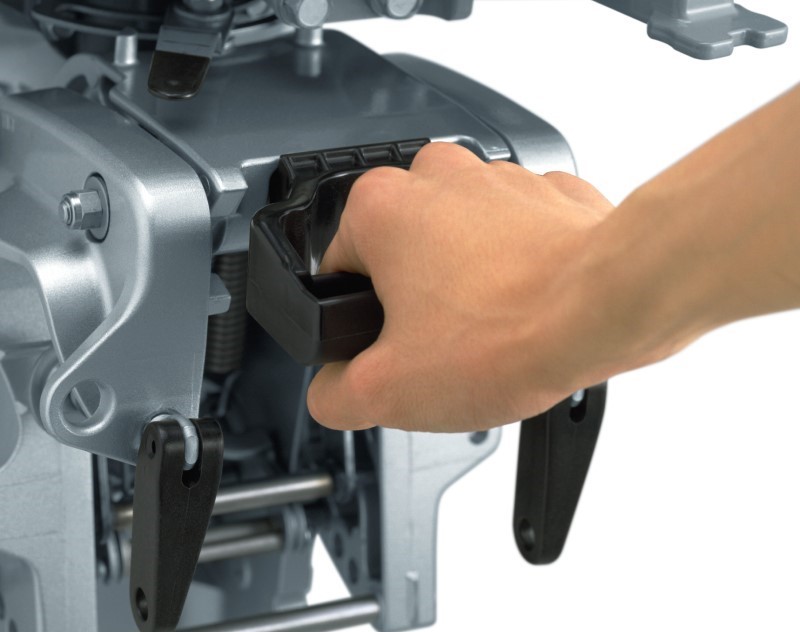

INTEGRATED CARRYING HANDLE – EASIER TRANSPORT

A integrated carrying handle makes transporting the engine a breeze. The convenient, foldaway carry handle is situated at the exact top/bottom balance point of the engine. This means the engine carries more easily in a level position.

HIGH OUTPUT CHARGING

The BF15 and 20 have the largest alternator in their class. These motors generate 12 Amps at only 3000 RPM. This helps to maintain battery charge and keep electronics running at trolling speeds.

PENDULUM MOUNT SYSTEM – SMOOTH OPERATION

Honda’s exclusive triangulated rubber mount system absorbs vibration and provides unbelievably smooth operation.

QUIET & SMOOTH PERFORMANCE

CONVENIENT, UP FRONT TILLER CONTROLS

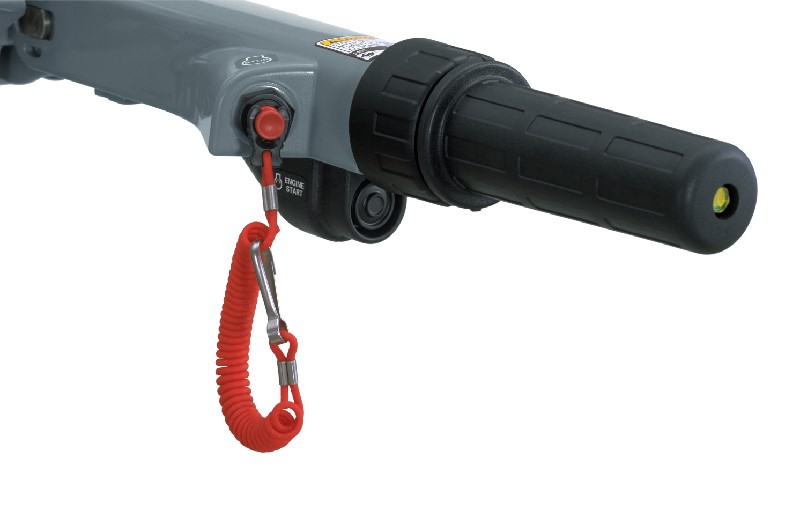

A convenient front-mounted shift lever allows fingertip shifting. The Twist Grip Throttle & Tensioner minimize driver fatigue.

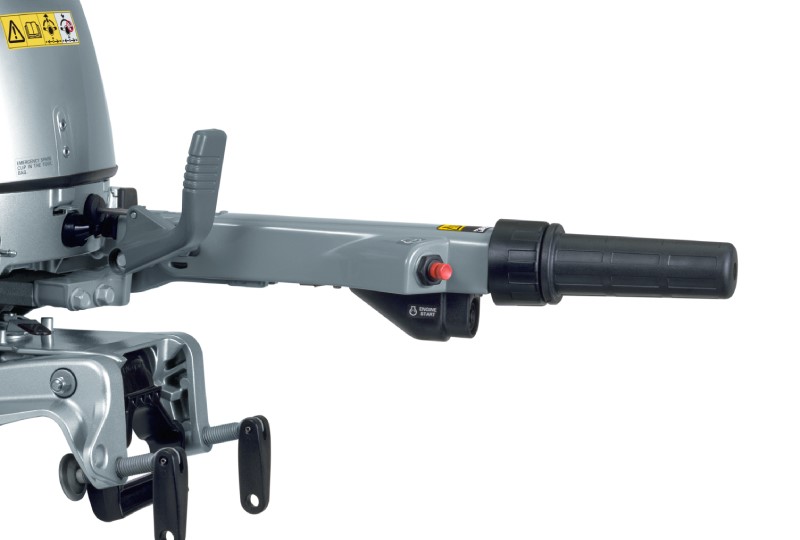

LONGER TILLER HANDLE – BETTER CONTROL

A convenient longer tiller handle improves control and reduced steering effort. The extended handle is made of a lightweight composite, increasing its durability while decreasing the motor’s weight.

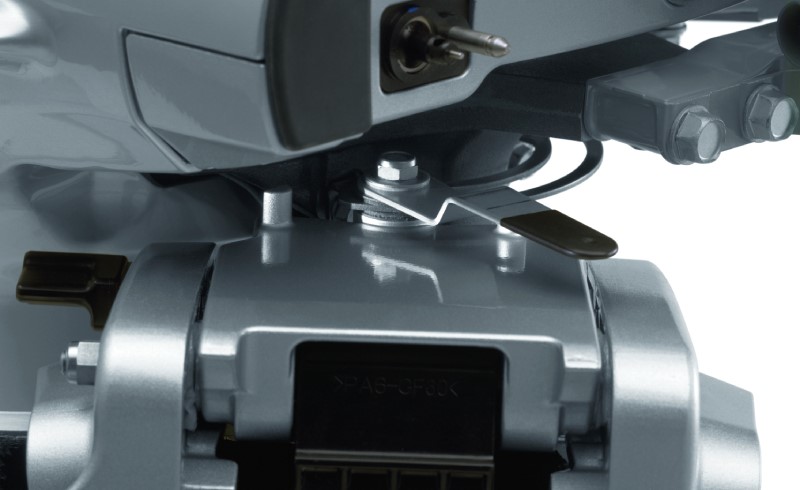

EZ STEER FRICTION CONTROL

A unique lever design allows you to precisely adjust steering tension for improved control and comfort.

BF15 – 20

Specification

ENGINE
BF15
BF20



Type

4-Stroke SOHC 2 Cylinder/4 Valves

4-Stroke SOHC 2 Cylinder/4 Valves

Displacement

350 cc (21.4 cubic inches)

350 cc (21.5 cubic inches)

Bore & Stroke

59 mm x 64 mm (2.3 x 2.5 inches)

59 mm x 64 mm (2.3 x 2.5 inches)

Full Throttle RPM Range

4,500-5,500 RPM

5,000-6,000 RPM

Rated Power

15 HP @ 5,000 RPM

20 HP @ 5,500 RPM

Cooling System

Water Cooled

Water Cooled

Fuel Delivery

1 Carburetor

1 Carburetor

Ignition System

PGM-IG

PGM-IG

Starting System

Electric/Recoil

Electric/Recoil

Exhaust

Through Hub

Through Hub

Lubrication

Wet Sump

Wet Sump

Trim Range

4 Stage 8°-12°-16°-20°

4 Stage 8°-12°-16°-20°

Tilt Range

72°

72°


DRIVE
BF15
BF20



Gear Ratio

2.08:1

2.08:1

Gear Shift

F-N-R

F-N-R


EQUIPMENT
BF15
BF20



Alternator with voltage regulator (Electric Start)

12-Amp (148 watt)

12-Amp (151 watt)

Alternator with voltage regulator (Manual Start)

6-Amp (76 watt)

6-Amp (76 watt)

Propeller

4-Blade Aluminum

4-Blade Aluminum

Diameter x Pitch, Standard

9¼ x 10 inches

9¼ x 10 inches

Diameter x Pitch, Power Thrust

10 x 7.625 inches

10 x 7.625 inches

Power Tilt

Available

Available

Oil Pressure Alert

Standard

Standard

Temperature Alert

Standard

Standard

Rev-Limiter

Standard

Standard


DIMENSIONS
BF15
BF20



Overall Width

350 mm/13.8 inches

350 mm/13.8 inches


TRANSOM HEIGHT
BF15
BF20



S Type

381 mm/15 inches

381 mm/15 inches

L Type

508 mm/20 inches

508 mm/20 inches

X Type

635 mm/25 inches

NA


DRY WEIGHT
BF15
BF20



S Type

47 kg/104 lbs.

47 kg/104 lbs.

L Type

50 kg/110 lbs.

50 kg/110 lbs.

X Type

52 kg/115 lbs.

NA
