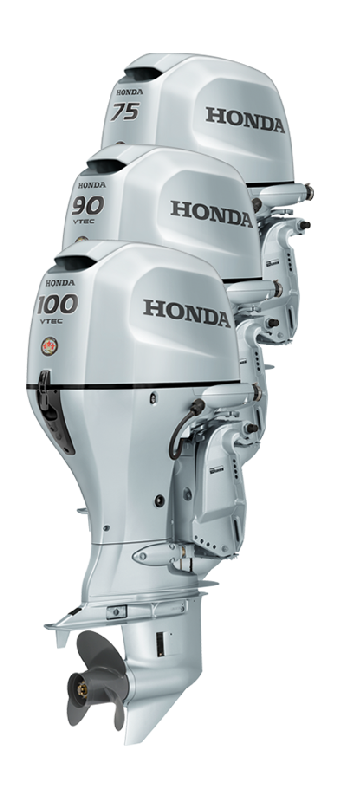

BF75 – 90 – 100
Experience Honda’s Cutting-Edge Innovation on the Water
Behold Honda’s pinnacle of technological advancement – a lightweight powerhouse in the mid-range segment. The BF100, BF90, and BF75 are the embodiment of Honda’s legendary technological excellence and exclusive features.
At the heart of this innovation is VTEC technology, integrated into the BF90 and BF100. VTEC delivers an unmatched blend of power, torque, and fuel efficiency across all speeds, drawing from the same premium innovation that drives Honda cars
Complementing this is the Multi-port Electronic Fuel Injection, BLAST (Boosted Low-Speed Torque), Lean Burn Control, and a 3-Way Cooling System. These cutting-edge features result in a trio of
outboard motors that are not only economical and efficient but also incredibly durable. In essence, they guarantee you maximum quality time on the water, allowing you to savor every moment of your boating experience.
BF75 – 90 – 100

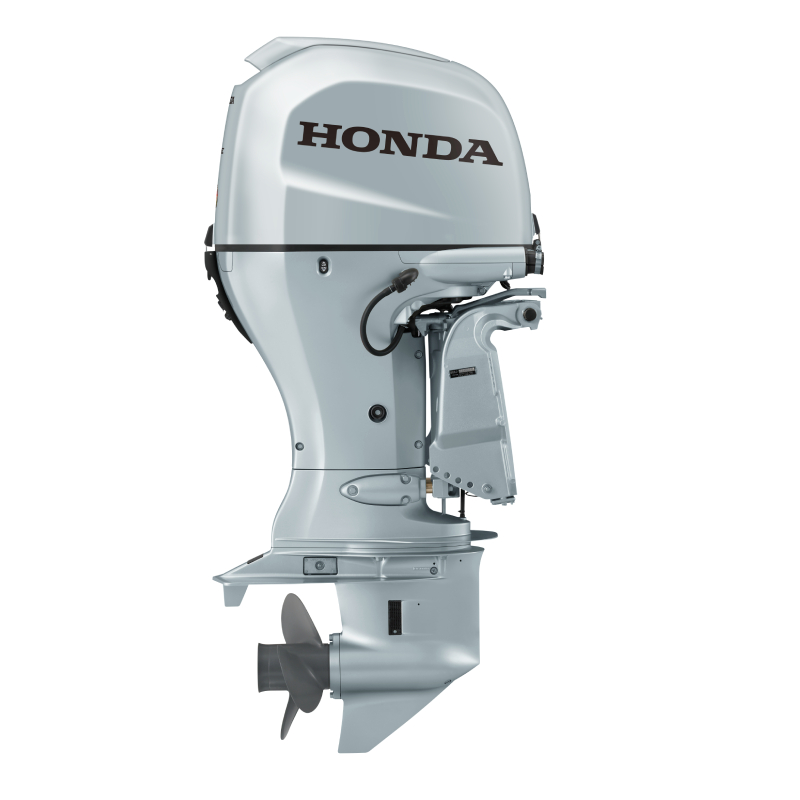

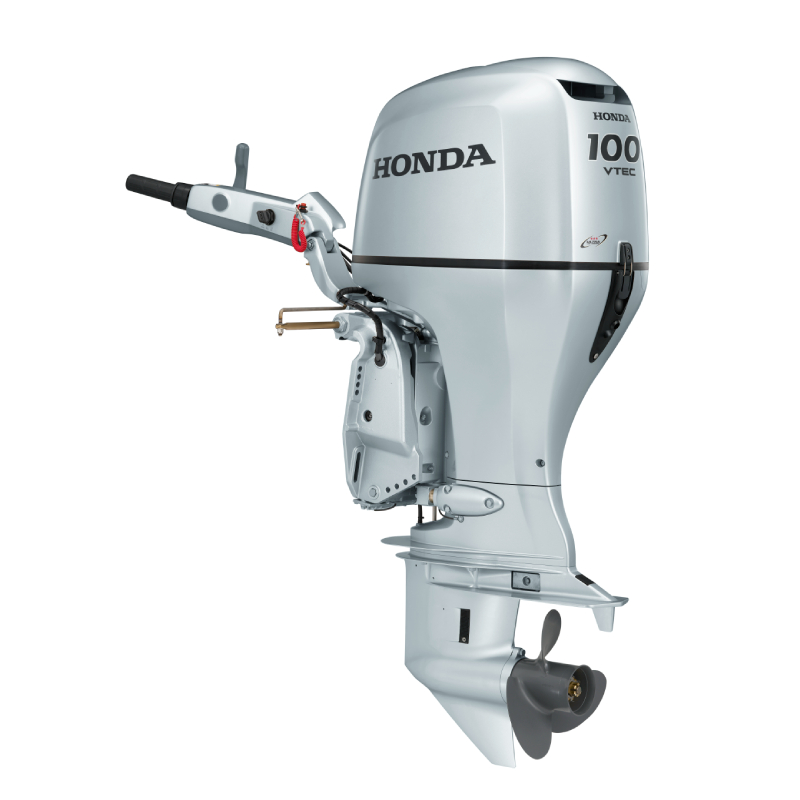

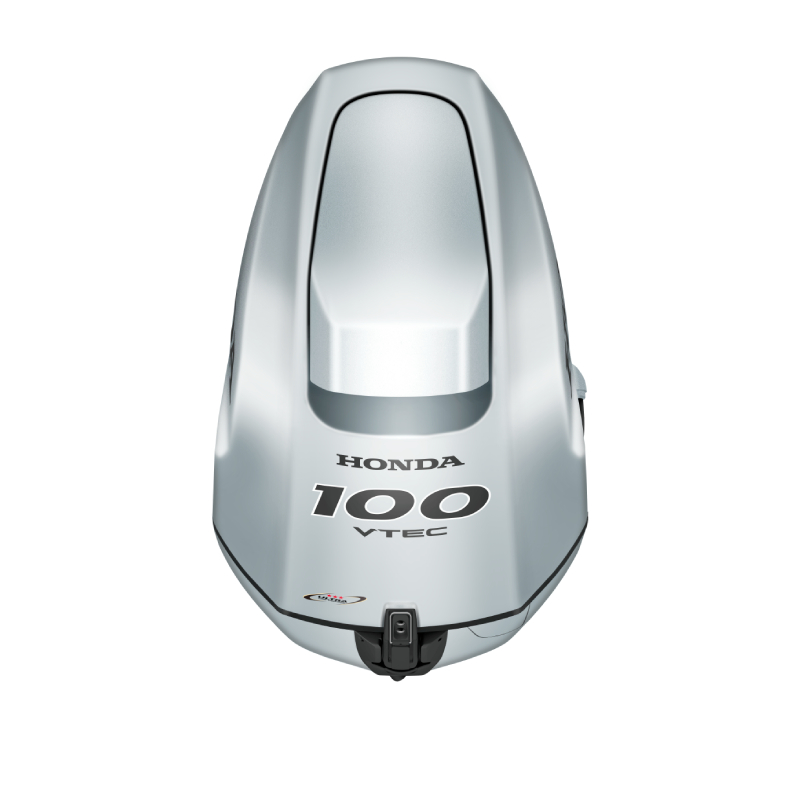

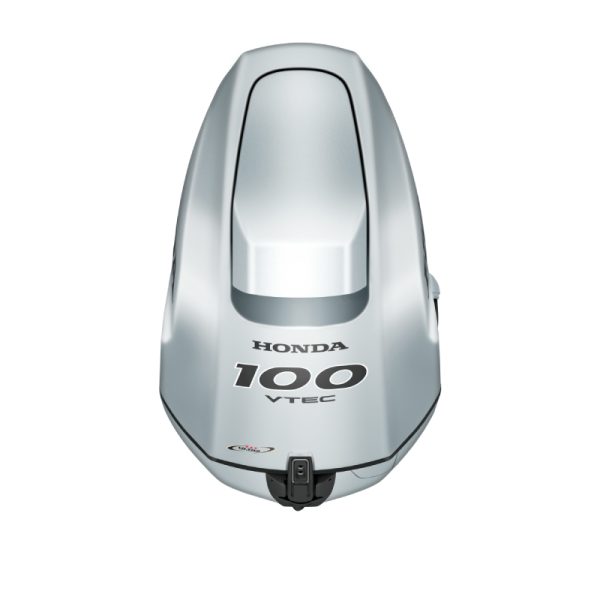

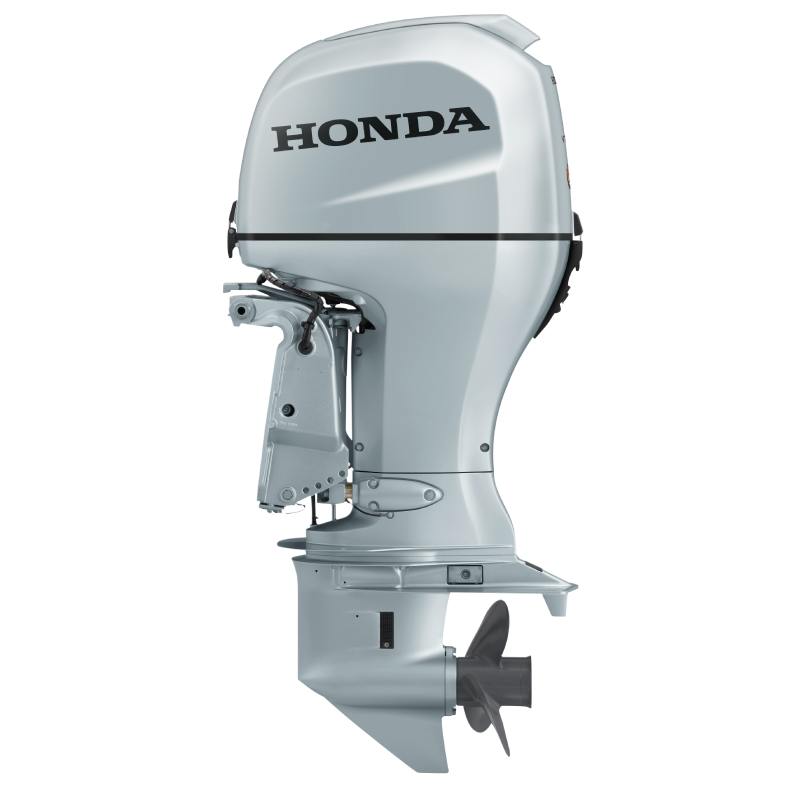

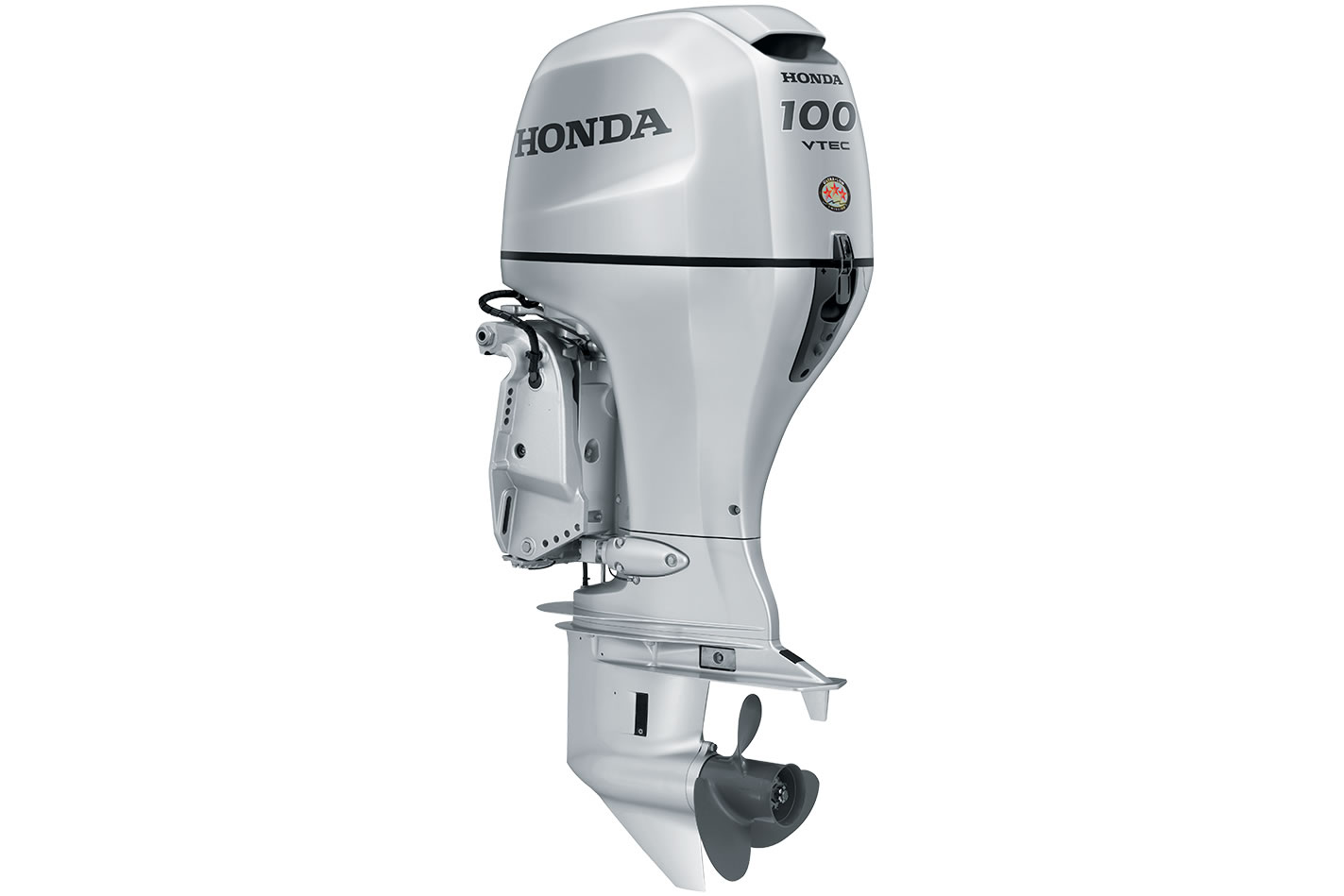

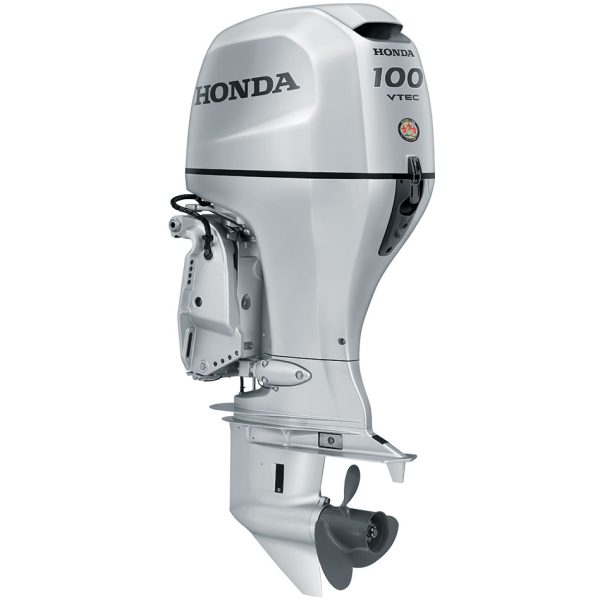

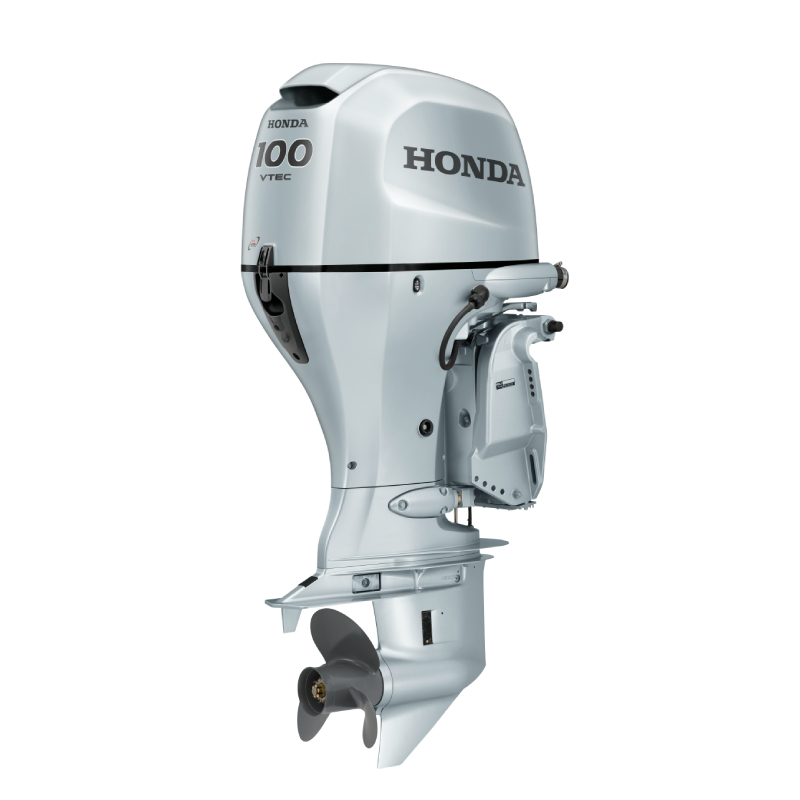

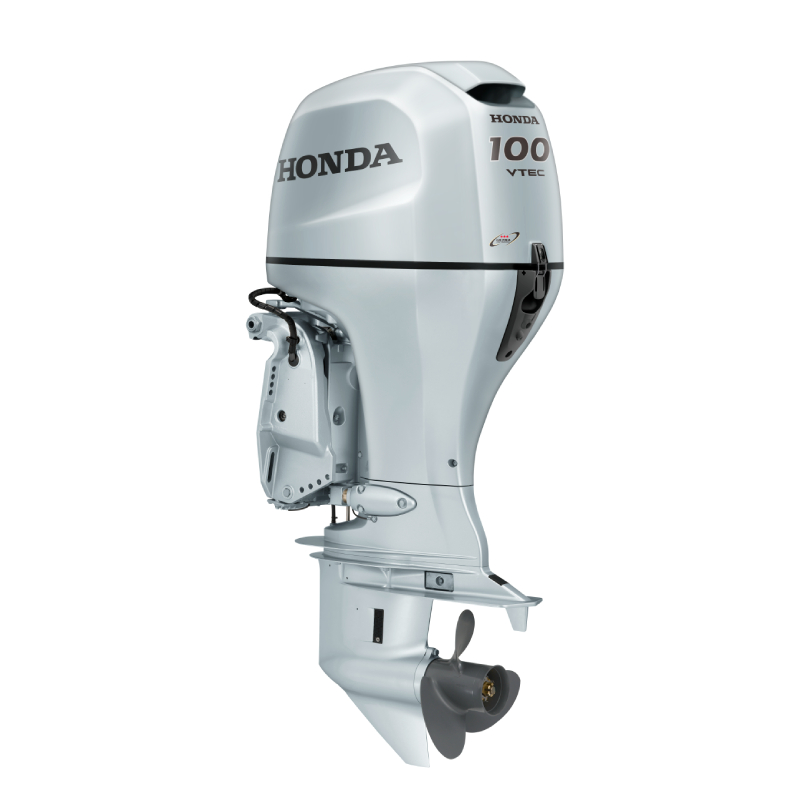

Engine Gallery
BF75 – 90 – 100
Specification
ENGINE |
BF75 |
BF90 |
BF100 |
Type |
4-Stroke SOHC 4 Cylinder/16 Valves |
4-Stroke SOHC 4 Cylinder/16 Valves |
4-Stroke SOHC 4 Cylinder/16 Valves |
Displacement |
1,496 cc (91.4 cubic inches) |
1,496 cc (91.4 cubic inches) |
1,496 cc (91.4 cubic inches) |
Bore & Stroke |
73 mm x 89.4 mm (3.0 x 3.5 inches) |
73 mm x 89.4 mm (3.0 x 3.5 inches) |
73 mm x 89.4 mm (3.0 x 3.5 inches) |
Full Throttle RPM Range |
5,000-6,000 RPM |
5,300-6,300 RPM |
5,500-6,300 RPM |
Rated Power |
75 HP @ 5,500 RPM |
90 HP @ 5,800 RPM |
100 HP @ 5,900 RPM |
Cooling System |
Water Cooled |
Water Cooled |
Water Cooled |
Fuel |
Unleaded Gas (86 Octane) |
Unleaded Gas (86 Octane) |
Unleaded Gas (91 Octane) |
Fuel Delivery |
Programmed Fuel Injection |
Programmed Fuel Injection |
Programmed Fuel Injection |
Ignition System |
MicroComputer Programmed |
MicroComputer Programmed |
MicroComputer Programmed |
Starting System |
Electric |
Electric |
Electric |
Exhaust |
Through Hub |
Through Hub |
Through Hub |
Lubrication |
Wet Sump |
Wet Sump |
Wet Sump |
Trim Range |
-4° to +16° |
-4° to +16° |
-4° to +16° |
Tilt Range |
68° |
68° |
68° |
DRIVE |
BF75 |
BF90 |
BF100 |
Gear Ratio |
2.33:1 |
2.33:1 |
2.33:1 |
Gear Shift |
F-N-R |
F-N-R |
F-N-R |
EQUIPMENT |
BF75 |
BF90 |
BF100 |
Alternator (Electric Start) |
44-Amp (554 watt) |
44 Amp |
44 Amp |
Battery Charging Power |
35 Amp |
35 Amp |
35 Amp |
Propeller |
Optional |
Optional |
Optional |
Power Tilt |
NA |
NA |
NA |
Power Trim & Tilt |
Standard |
Standard |
Standard |
Gas Assisted Tilt |
NA |
NA |
NA |
Oil Pressure Alert |
Standard |
Standard |
Standard |
Temperature Alert |
Standard |
Standard |
Standard |
Rev-Limiter |
Standard |
Standard |
Standard |
Speedometer Pickup |
Standard |
Standard |
Standard |
DIMENSIONS |
BF75 |
BF90 |
BF100 |
Overall Width |
480 mm/18.9 inches |
480 mm/18.9 inches |
480 mm/18.9 inches |
TRANSOM HEIGHT |
BF75 |
BF90 |
BF100 |
L Type |
508 mm/20 inches |
508 mm/20 inches |
508 mm/20 inches |
X Type |
NA |
635 mm/25 inches |
635 mm/25 inches |
DRY WEIGHT |
BF75 |
BF90 |
BF100 |
L-Type |
163 kg/359 lbs. |
163 kg/359 lbs. |
163 kg/359 lbs. |
X-Type |
NA |
166 kg/365 lbs. |
166 kg/365 lbs. |
